    Overhead Hoist Transport（OHT）
    Utilizing intelligent algorithm scheduling software, the OHT replaces cleanroom workshop personnel in carrying the wafer carrier. This enhances production efficiency and quality, realizes intelligent manufacturing, and reduces production costs.

    Optional configuration: FOUP/POD/Reticle OHT
    Feature Highlights:

    More Compact OHT Structure

    Increased Travel Speed

    Quicker Pickup and Delivery

    More Stable Wafer Cassette Transportation

    Improved Orbital Diverging and Converging Flow Control

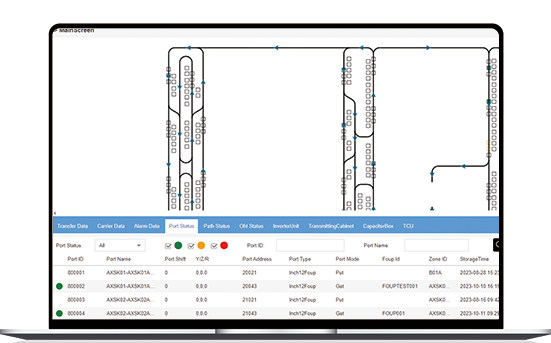

    Software Description
    MSTC OHT Control System
    MeetFuture Smart Transport Controller
    Performs OHT path planning and scheduling, utilizing path algorithms to find the optimal route among multiple options. Provides real-time traffic monitoring to avoid potential accident points. Connects with the MES's HOST, converts transmitted transport and control commands into AMHS control, and reports relevant status information to the HOST.

    Application scenario: OHT path planning and dynamic scheduling control
    BACK

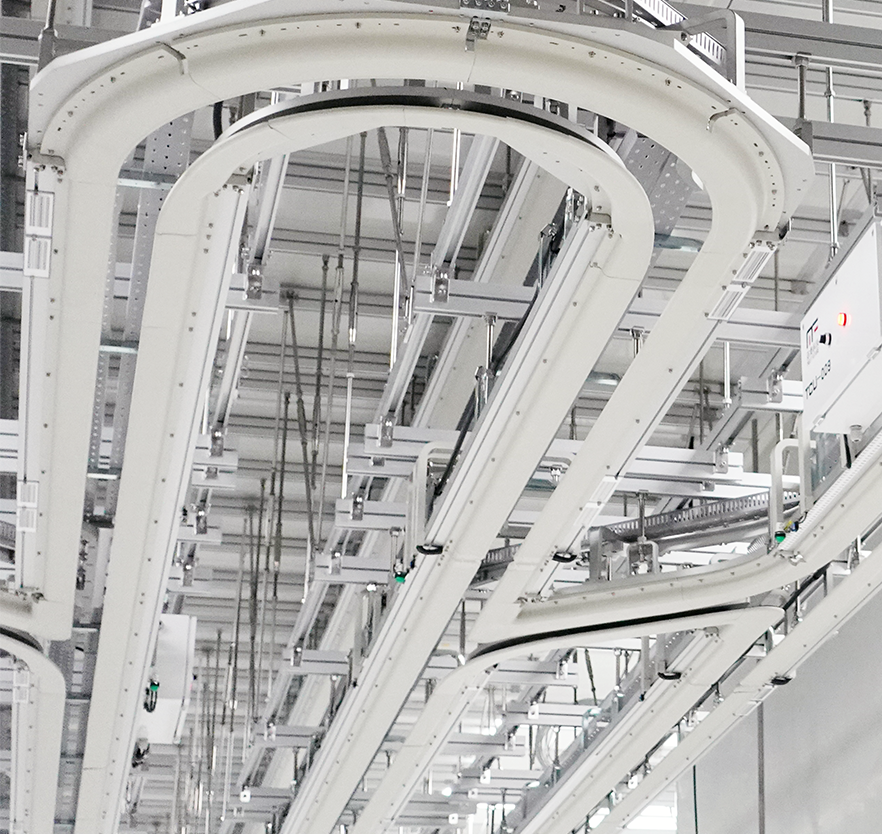

    OHT Track System
    Product Function
    The OHT (Overhead Hoist Transport) track system is adeptly suspended from the clean room's ceiling, comprising straight and curved tracks, a non-contact power supply, and a communication network.
    This system seamlessly connects all workstations, fulfilling stringent requirements for installation strength, precision, cleanliness, vibration control, and traffic efficiency. Such meticulous design ensures the OHT operates efficiently and stably on the tracks, achieving point-to-point handling capabilities.

    Optional configuration: Single-layer rail/double-layer rail, non-redundant power supply/redundant power supply, N-type, Y-type, R-type, and other curved rails.
    Feature Highlights：

    For more complex handling needs, a two-tier rail system is available

    The Rail Transit Control System (TCU) manages the smooth passage of the OHT on the track, optimizing handling efficiency

    The CPS contactless power supply system utilizes power supply redundancy technology for uninterrupted power

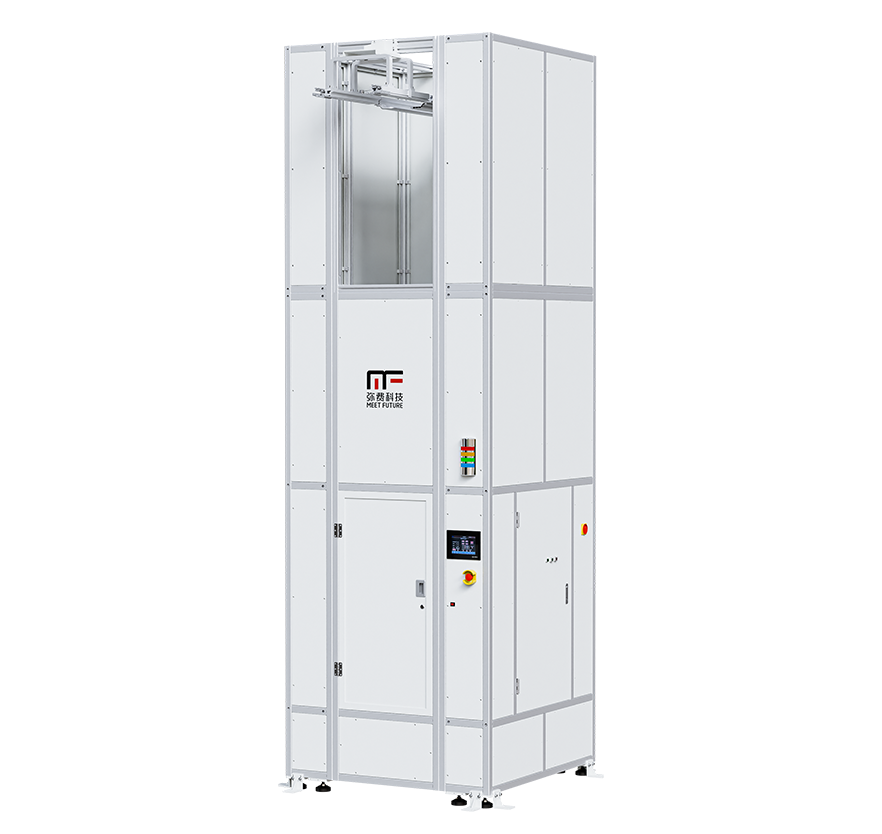

    Tower Lift
    Product Function
    The tower elevator facilitates the placement or lowering of the overhead traveling crane into the track for maintenance using the internal chain. It features a closed design for seamless connection between the OHT track and the ground tooling trolley.

    Model：MLT-T30、 MLT-T30-A
    Feature Highlights：

    Enclosed Design Ensures Safety

    Equipped with Safety Inspection Sensor

    Protective Door Set for Ground Interface

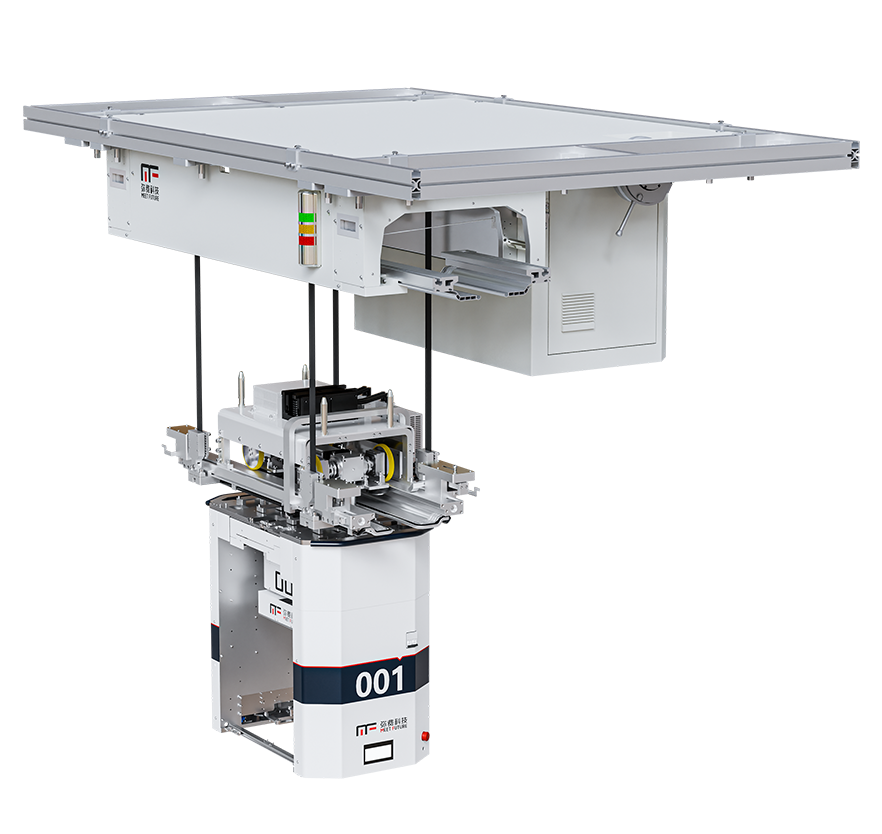

    Carrier Lifting Calibration Platform
    Product Function
    The OHT correction platform accurately adjusts the trolley's initial position for product placement. The platform can precisely correct the placement positions of four stations: OHB (left), OHB (right), STK, and LPS.

    Configuration: 8"/12"
    Feature Highlights：

    Broad Range of Usage Scenarios

    Convenient Operation

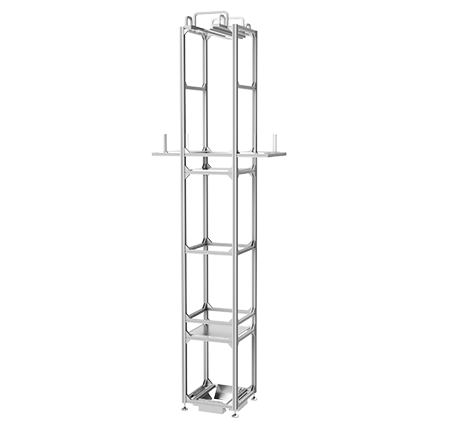

    Belt Elevator
    Product Function
    The belt elevator efficiently places the OHT on the track or lowers it for maintenance. Connected to the ground tooling trolley via belt transport, it boasts an open design and compact size.

    Model：MLT-B20
    Feature Highlights：

    Versatile and Unrestricted Usage Scenarios

    Space-Saving

    Equipped with Safety Inspection Sensor

    Convenient Operation

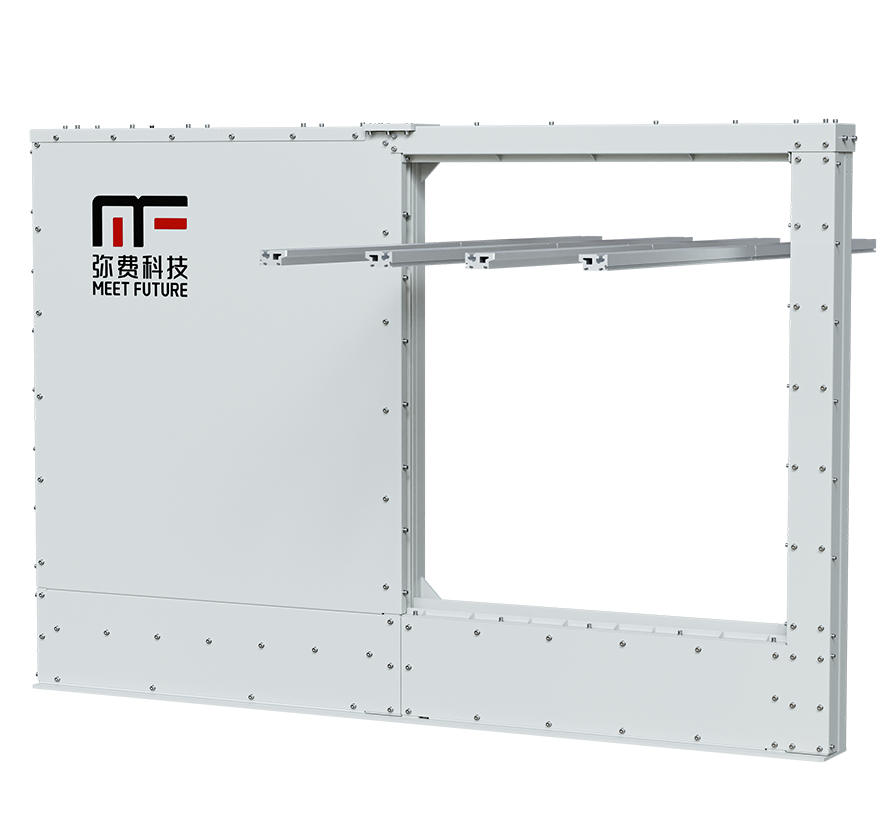

    Fire Door
    Product Function
    Installed adjacent to the FAB plant's workshop and at corridor-workshop junctions. Upon fire confirmation, the fire alarm system triggers the OHT system, and the fire door closes upon receiving the signal, effectively blocking the fire within the FAB.

    Model：MFD-100
    Feature Highlights：

    Fire Endurance: 3 Hours

    UL Fire Rated
